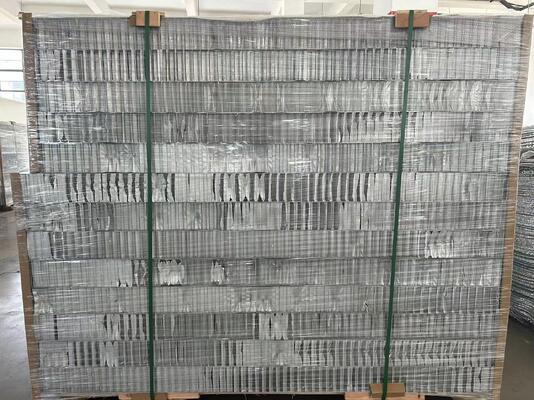

Brazed Aluminum Honeycomb Core With Over 1.5MPa Is Used For Oil Floating Discs
1. Descriptions:
Brazing aluminum honeycomb core is a process of rolling special adhesive onto composite aluminum foil, cutting out composite aluminum foil segments, stacking them layer by layer to form composite aluminum foil stacks, applying pressure and heating to cure the special adhesive, cutting the composite aluminum foil stacks and pulling them apart to form aluminum honeycomb core.
2. Specifications of brazed aluminum honeyomb core:
• Substrate type: The mainstream is aluminum alloy (such as 3003, 5052, 6061 series, commonly used in aviation grade 5A06, 2A12)
• Core aluminum foil thickness: usually 0.03-0.2mm (thinner for aviation grade, thicker for construction/transportation grade)
• Solder type: mostly aluminum based solder (such as Al Si system, melting point 577-615 ℃), which needs to be matched with the substrate to ensure metallurgical bonding.
• Side length: 3-15mm, For aviation, it is 3-6mm, and for construction, it is 8-15mm
• Thickess: 5-10mm, 10-30mm for high-speed rail carriages and 20-50mm for aviation structures
3. Applications:
Petroleum floating plate: Welded honeycomb composite panel, which has the characteristics of "light weight", "high strength", and "lightning protection", has become an ideal material for floating roofs and external mesh shells in oil storage tanks. Effectively solved problems such as floating and sinking disks, structural disintegration, and oil and gas evaporation.
In the aerospace field, such as aircraft wings, fuselage structures, satellite components, etc., they can reduce the weight of aircraft, improve fuel efficiency and flight performance.
In the field of transportation, it can be applied to the floor, ceiling, and partition of high-speed rail and subway carriages, as well as the body structure of automobiles and ships, which can reduce the weight of vehicles and improve energy utilization efficiency.
In the field of architectural decoration, it is used for building exterior walls, roofs, indoor partitions, etc. It has good insulation and sound insulation effects, and can also improve the overall strength and stability of buildings.
4. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for micro-porous aluminum honeycomb core of quality control of parts, processing, testing, packaging, etc.
5. Brazed Aluminum honeycomb core of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Factory show
8. FAQ
Q1. What is Brazed aluminum honeycomb core usd for?
A: The aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.
Q2. What are the advantages of Brazed aluminum honeycomb core?
A: Aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of brazed aluminum honeycomb core?
A: Aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
